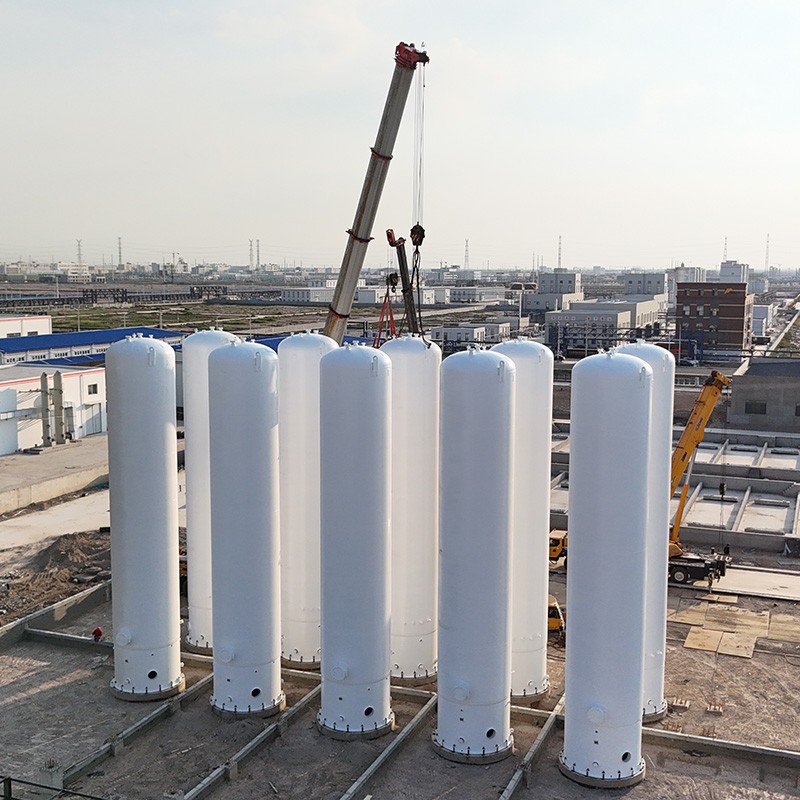

Causes and Elimination Methods of “False Liquid Level” in Cryogenic Storage Tanks
“False liquid level” refers to a situation where the indicated liquid level of a cryogenic storage tank (such as LOX, LIN, LAr, LNG tanks) does not match the actual internal liquid volume. This phenomenon can lead to incorrect operation decisions, overfilling risks, and unstable system performance. Understanding its causes and implementing effective corrective measures is essential for safe and accurate tank operation.
1. Causes of False Liquid Level in Cryogenic Storage Tanks
(1) Sensor Frosting or Ice Blockage
At extremely low temperatures, frosting on the level probe or inside the guide tube can interfere with correct signal transmission, leading to inaccurate level readings.
(2) Vacuum Degradation Causing High Boil-Off Rate
Loss of vacuum increases heat ingress, which accelerates vapor generation. Rapid vaporization can create unstable stratification, causing fluctuating or misleading level readings.
(3) Density Stratification of Cryogenic Liquids
Cryogenic fluids may have warm and cold layers, especially during filling or when thermal stratification occurs. Level sensors relying on density or capacitance can misinterpret layer boundaries.
(4) Blocked or Faulty Differential Pressure Level Gauges
Ice or impurities inside the pressure taps may block the sensing lines, causing incorrect pressure differential and therefore false level indication.
(5) Leaking or Damaged Level Sensor Tubes
If the level measurement tube (for guided-wave radar, float-type, or capacitance sensors) has cracks or leaks, measurement becomes unstable.
(6) Residual Gas Pockets
Gas trapped in the bottom of the tank or in measurement tubes can cause sudden jumps or drops in readings.
2. Elimination Methods
(1) Defrost and Clean Level Gauging Components
Remove ice or frost from sensor surfaces or guide tubes.
Ensure proper insulation around sensor mounting points to avoid cold leaks that cause icing.
(2) Restore Tank Vacuum or Improve Insulation
Re-establish vacuum in double-walled tanks.
Replace moisture-damaged insulation if necessary.
Improved insulation reduces boil-off and stabilizes the liquid level.
(3) Eliminate Stratification Through Proper Filling and Venting
Use controlled fill rates to minimize thermal layering.
Perform periodic mixing (via external circulation or controlled venting) to equalize temperature and density.
(4) Inspect and Clean Differential Pressure Piping
Remove blockages from impulse lines.
Replace cracked or aged pressure lines to ensure accurate pressure transmission.
Add heat tracing if icing frequently occurs.
(5) Replace or Repair Faulty Level Sensors
Check wiring, sensor calibration, and structural integrity of probe tubes.
Replace damaged sensors or seals to stabilize readings.
(6) Remove Gas Pockets
Vent gases trapped in sensing tubes or at the tank bottom.
Maintain proper pressure balance to avoid vapor entrapment.
3. Preventive Measures
Implement regular inspection and calibration of level sensors.
Maintain the vacuum integrity of cryogenic tanks through periodic monitoring.
Ensure proper pre-cooling procedures before filling.
Avoid rapid, large-volume filling that increases stratification risk.
Keep impulse lines dry, clean, and well-insulated.
Install redundant liquid level measurement systems for critical tanks.
Conclusion
False liquid level readings in cryogenic storage tanks are commonly caused by sensor icing, vacuum degradation, liquid stratification, pressure line blockages, and equipment damage. Eliminating these issues through defrosting, vacuum restoration, sensor maintenance, and proper filling procedures ensures accurate monitoring and safe tank operation.
References
NFPA 55 – Compressed Gases and Cryogenic Fluids Code.
EN 13458 – Cryogenic Vessels – Static Vacuum Insulated Vessels.
ISO 21014 – Cryogenic Vessels — Temperature and Pressure Measurement Guidelines.
Barron, R. F. (1999). Cryogenic Systems, 2nd Edition. CRC Press.
Hord, J. (2011). Handling and Storage of Cryogenic Liquids.
